Material - TPR

TPR:TPR is a kind of thermoplastic elastomers.

high molecular、high elastic、non-toxic、non hydrolysis

but not resistant to grease and iron filings



We have two types of TPR.

  • TPR:material from Taiwan,hardness:85 Shore A
  • HTPR (High Elastic TPR):material from Japan,hardness:65 Shore A



Light Duty HTPR Caster (click the picture for more information)



四角雙剎四角雙剎

Dia.:38mm / 50mm / 50mm / 75mm

Width:23mm

Features:light weight、easy to move、durable、high abrasive

Dynamic Load:30~40 KG





Light Duty TPR / HTPR Caster (click the picture for more information)

 四角雙剎四角雙剎四角雙剎

Dia.:61mm / 76mm / 76mm / 100mm

Width:25mm

Dynamic Load:65 KG

Other option:high elastic TPR



Medium Duty TPR / HTPR Caster (click the picture for more information)

四角雙剎314高彈性TPR輪 (76mm X 31mm)

Dia.:76mm / 101mm / 125mm

Width : 31mm (1-1/4")

Dynamic Load:100 KG

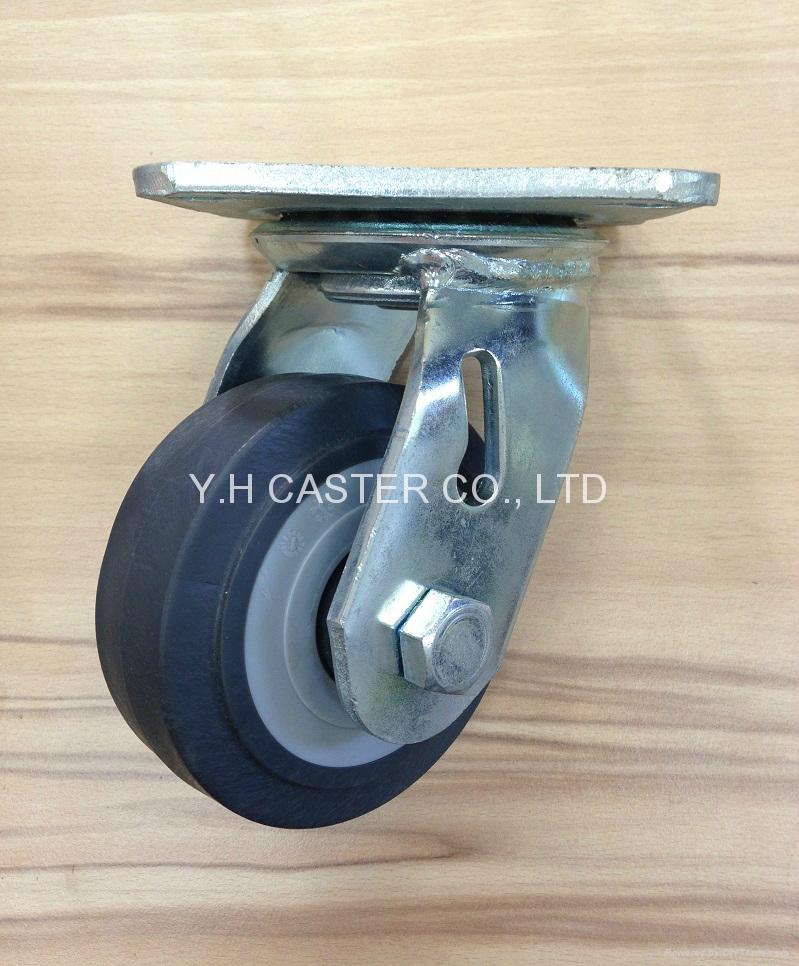

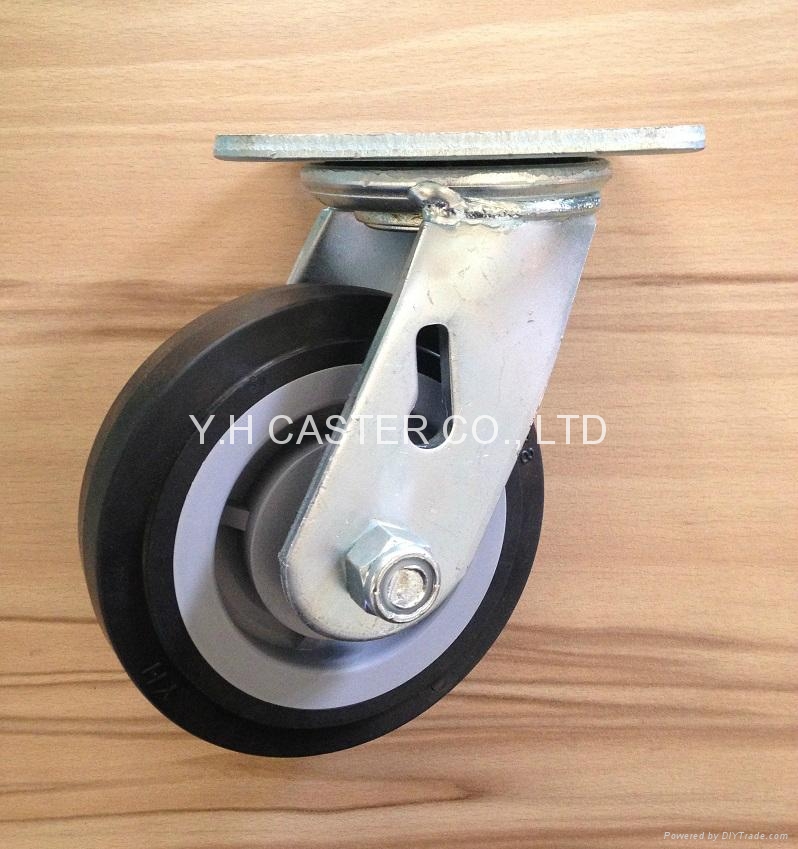

Heavy Duty TPR / HTPR Caster (click the picture for more information)

 四角活動四角活動四角活動



Dia.:4"-100mm / 5"-125mm / 6"-150mm

Width:38mm (1-1/2")

Dynamic Load:150 KG

With dual bearing:4"、5" Caster with 6202 bearing x2 (inner size:15mm)

                                    6" Caster with 6003 bearing x2 (inner size:17mm)

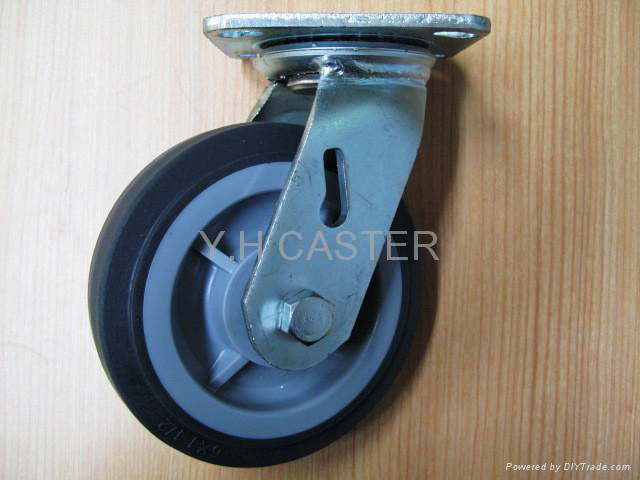

Heavy Duty TPR / HTPR Caster (click the picture for more information)



Dia.:100mm / 125mm / 150mm / 200mm

Width:50mm

Dynamic Load:200~400 KG

With dual bearing:6203  (inner size:17mm)
