38 Series 615 High Elastic TPR Caster

Swivel plate
  • Swivel plate
  • Plate with side brake
  • Plate with total brake
  • Rigid
  • Wheel
  • 38 Series 615 High Elastic TPR Caster
  • Plate Size
Model No.︰-
Brand Name︰Y.H CASTER
Country of Origin︰Taiwan, China
Unit Price︰-
Minimum Order︰-
Share on:

 Total 19 Related Items
Prev34567Next

Product Description

38 Series 615 High Elastic TPR Caster



Wheel Diameter:150mm (6")

Wheel Width:38mm (1-1/2")

Wheel Type:High Elastic TPR / TPR (Hardness:65 Shore A / 85 Shore A)

Moving Loading:200 KG

Type:Rigid、Swivel Plate 、Plate with Brake

Brake Type:Total Brake or Side Brake

Plate Size:115 x 100mm (thk. :6mm)

Bolt Hole Spacing:76~92mm x 66~76mm

Total Height:190mm

Bearing:Precision Bearing #6003 ZZ (Hole:17mm)



Features:

1. low coefficient of friction~ mobile,effective, and time-saving

2. sturdy and durable,much better than traditional black rubber wheel (which is made and mixed from waste rubber and unknown black materials).

3. satisfy the frequent moving needs, especially for the logistics carts.



Code

item

code

615 High Elastic TPR Heavy Duty Caster (Swivel)

38-615JBG11-SW



615 High Elastic TPR Heavy Duty Caster (Rigid)

38-615JBG-RG

615 High Elastic TPR Heavy Duty Caster (with side Brake)

38-615JBG11-SB

615 High Elastic TPR Heavy Duty Caster (with Total Brake)

38-615JBG11-TB



615 TPR Heavy Duty Caster (Swivel)

38-615TBB11-SW

615 TPR Heavy Duty Caster (Rigid)

38-615TBB-RG

615 TPR Heavy Duty Caster (with side Brake)

38-615TBB11-SB

615 TPR Heavy Duty Caster (with Total Brake)

38-615TBB11-TB

Product Image

Swivel plate
Swivel plate

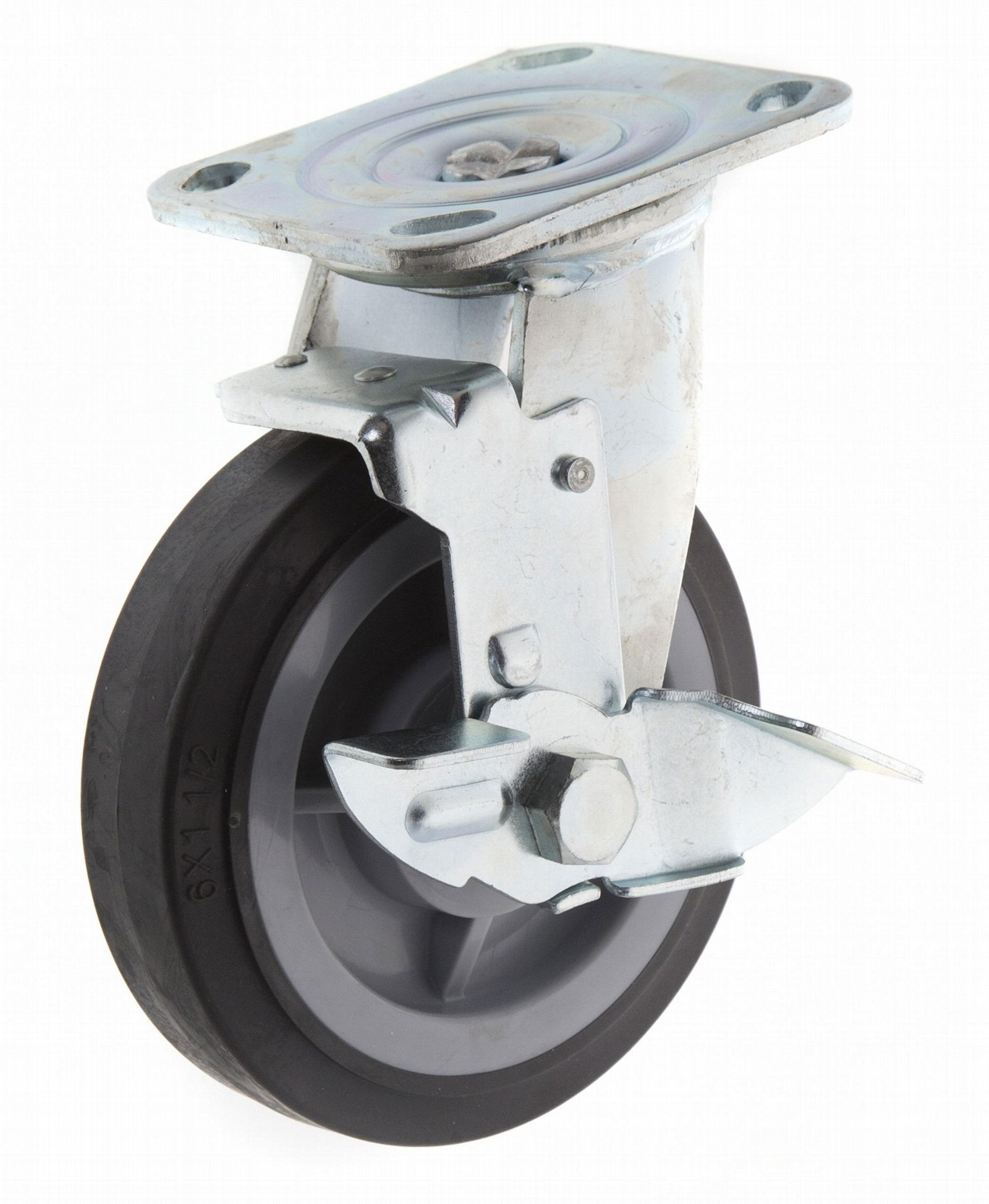

Plate with side brake
Plate with side brake

Plate with total brake
Plate with total brake

Rigid
Rigid

Wheel
Wheel


Plate Size
Plate Size
