25 Series 3x1 TPR Caster (Orange) (Threaded Stem w/o Brake)

Swivel Threaded Stem
  • Swivel Threaded Stem
  • Swivel Threaded Stem
  • Swivel Threaded Stem
  • Threaded with Total  Brake
  • Threaded with Total  Brake
  • Threaded with Total  Brake
  • 25 Series 3x1 TPR Caster (Orange) (Threaded Stem w/o Brake)
Model No.︰-
Brand Name︰Y.H CASTER
Country of Origin︰-
Unit Price︰-
Minimum Order︰-
Share on:

 Total 53 Related Items
Prev3435363738Next

Product Description

25 Series 3x1 TPR Caster (Orange)



Wheel Diameter:76mm (3")

Wheel Width:25mm (1")

Wheel Type:TPR

Hardness of TPR:85 Shore A

Moving Loading:65 KG

Type:Rigid、Swivel Plate、Plate with Brake、Swivel Threaded Stem、Threaded Stem with Brake

Brake Type:Total Brake

Color:Orange



Features:

※ Bearing:with Bearing #6200

※ Finish:Zinc plating (chrome is avaible)

※ double ball bearing raceways



details



Rigid

Plate Size

75 x 65mm

Bolt Hole Spacing

54~58 x 36~48mm

Total Height

106mm



Swivel

Plate

Plate Size

75 x 65mm (thk.:2.0mm)

Bolt Hole Spacing

54~58 x 36~48mm

Total Height

105mm

Threaded Stem

Stem Size

3/8” x 25mm

4/8” x 25mm



Code

item

code

3x1 TPR Caster Rigid (Orange)

25-310TBA-RG

3x1 TPR Caster Swivel Plate (Orange)

25-310TBA12-SW

3x1 TPR Caster Plate with Brake (Orange)

25-310TBA12-TB

3x1 TPR Caster Swivel Threaded Stem (3/8”) (Orange)

25-310TBA21-SW

3x1 TPR Caster Threaded Stem with Brake (3/8”) (Orange)

25-310TBA21-TB

3x1 TPR Caster Swivel Threaded Stem (4/8”) (Orange)

25-310TBA22-SW

3x1 TPR Caster Threaded Stem with Brake (4/8”) (Orange)

25-310TBA22-TB

Product Image

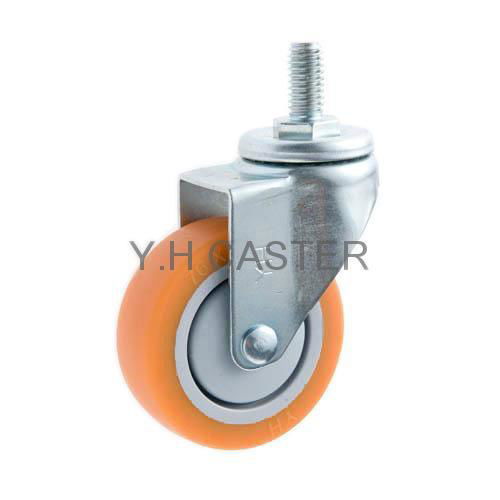

Swivel Threaded Stem
Swivel Threaded Stem

Swivel Threaded Stem
Swivel Threaded Stem

Swivel Threaded Stem
Swivel Threaded Stem

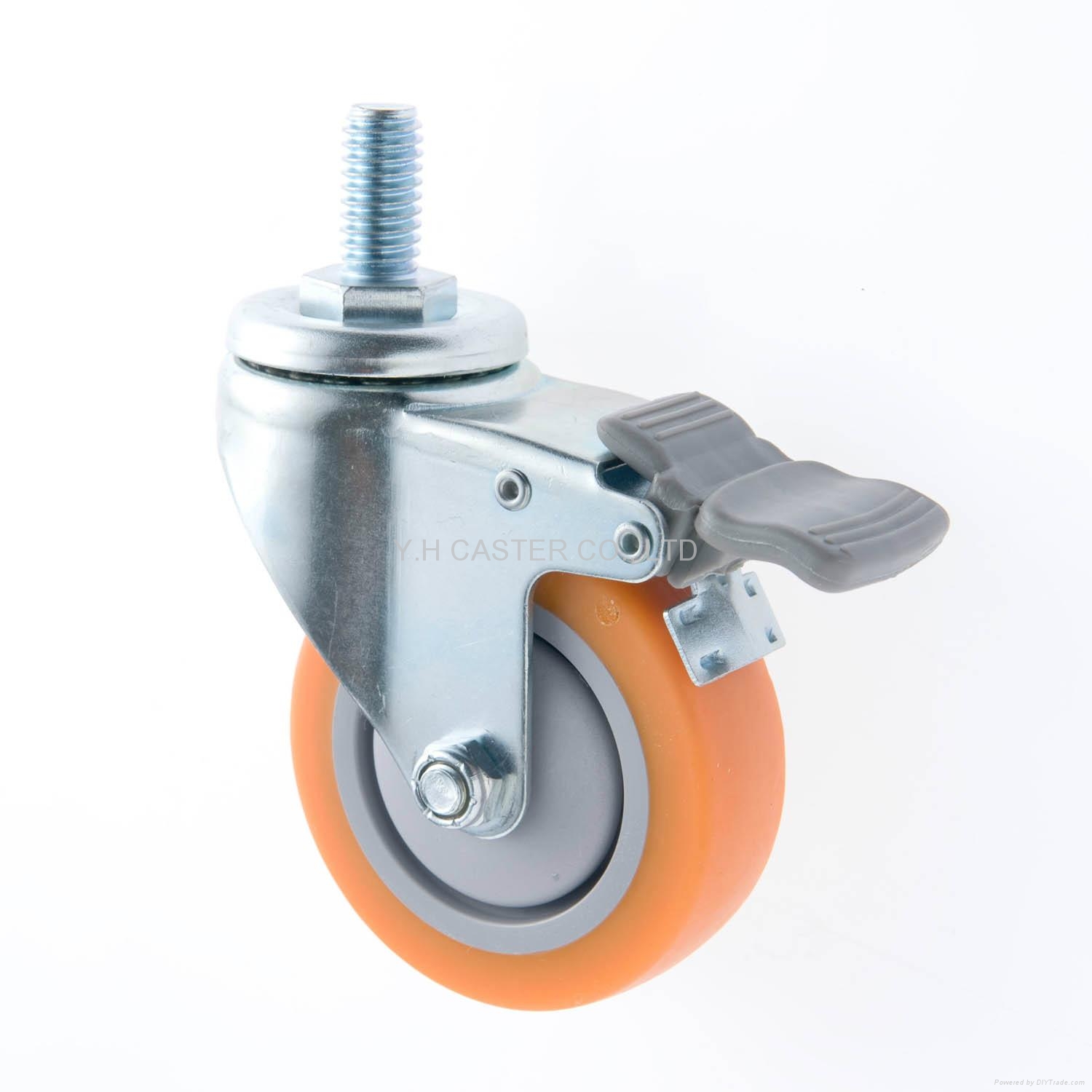

Threaded with Total  Brake
Threaded with Total Brake

Threaded with Total  Brake
Threaded with Total Brake

Threaded with Total  Brake
Threaded with Total Brake
