3x2 High Temperature Machine Caster

3x2 High Temperature Caster (Swivel Plate)
  • 3x2 High Temperature Caster (Swivel Plate)
  • 3x2 High Temprature Caster (Plate with Side Brake)
  • 3x2 High Temperature Caster (Rigid)
  • Plate Size
Model No.︰-
Brand Name︰Y.H CASTER
Country of Origin︰Taiwan
Unit Price︰-
Minimum Order︰-
Share on:

 Total 4 Related Items
Prev1234Next

Product Description

3x2 High Temperature Caster



Wheel Diameter Ø:3" / 74 mm

Wheel Width:47 mm

Wheel Type:Nylon + glass fiber (to 200 Celsius degree)

Loading:250 KG

Type:Rigid、Swivel Plate、Plate with Brake (zinc plated)

Brake Type:Side Brake

Bearing:two bearings (6200 ball bearing)

Color:brown or black



details





Rigid

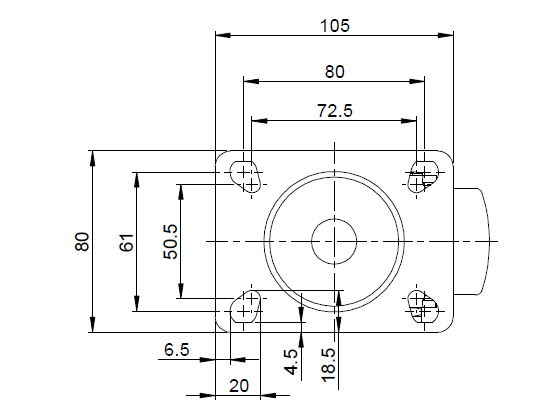

Plate Size

105 x 80mm

Bolt Hole Spacing

80 x 60mm

Total Height

103mm



Swivel

Plate

Plate Size

105 x 80mm

Bolt Hole Spacing

72.5~80 x 50.5~61mm

Total Height

103mm

Product Image

3x2 High Temperature Caster (Swivel Plate)
3x2 High Temperature Caster (Swivel Plate)

3x2 High Temprature Caster (Plate with Side Brake)
3x2 High Temprature Caster (Plate with Side Brake)

3x2 High Temperature Caster (Rigid)
3x2 High Temperature Caster (Rigid)

Plate Size
Plate Size
